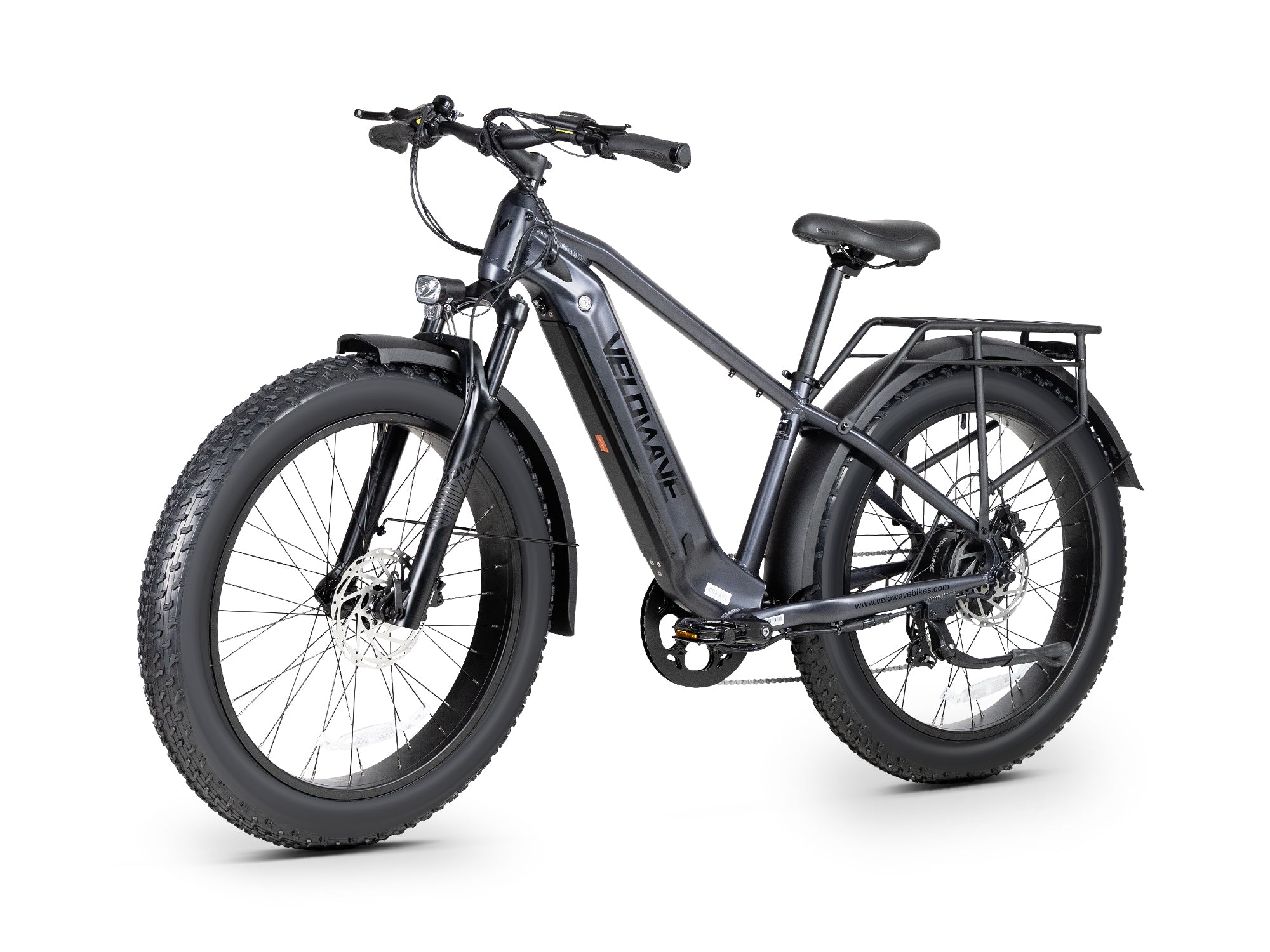

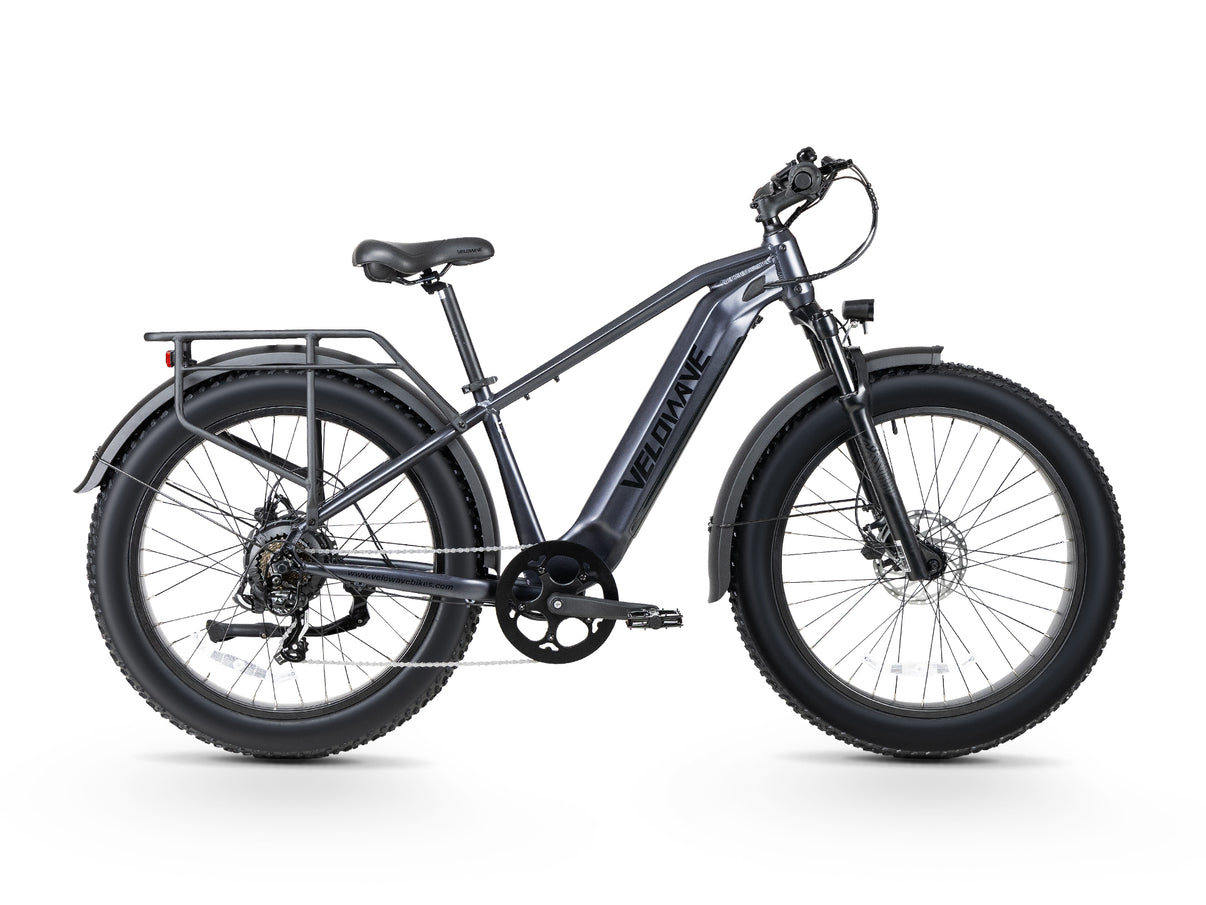

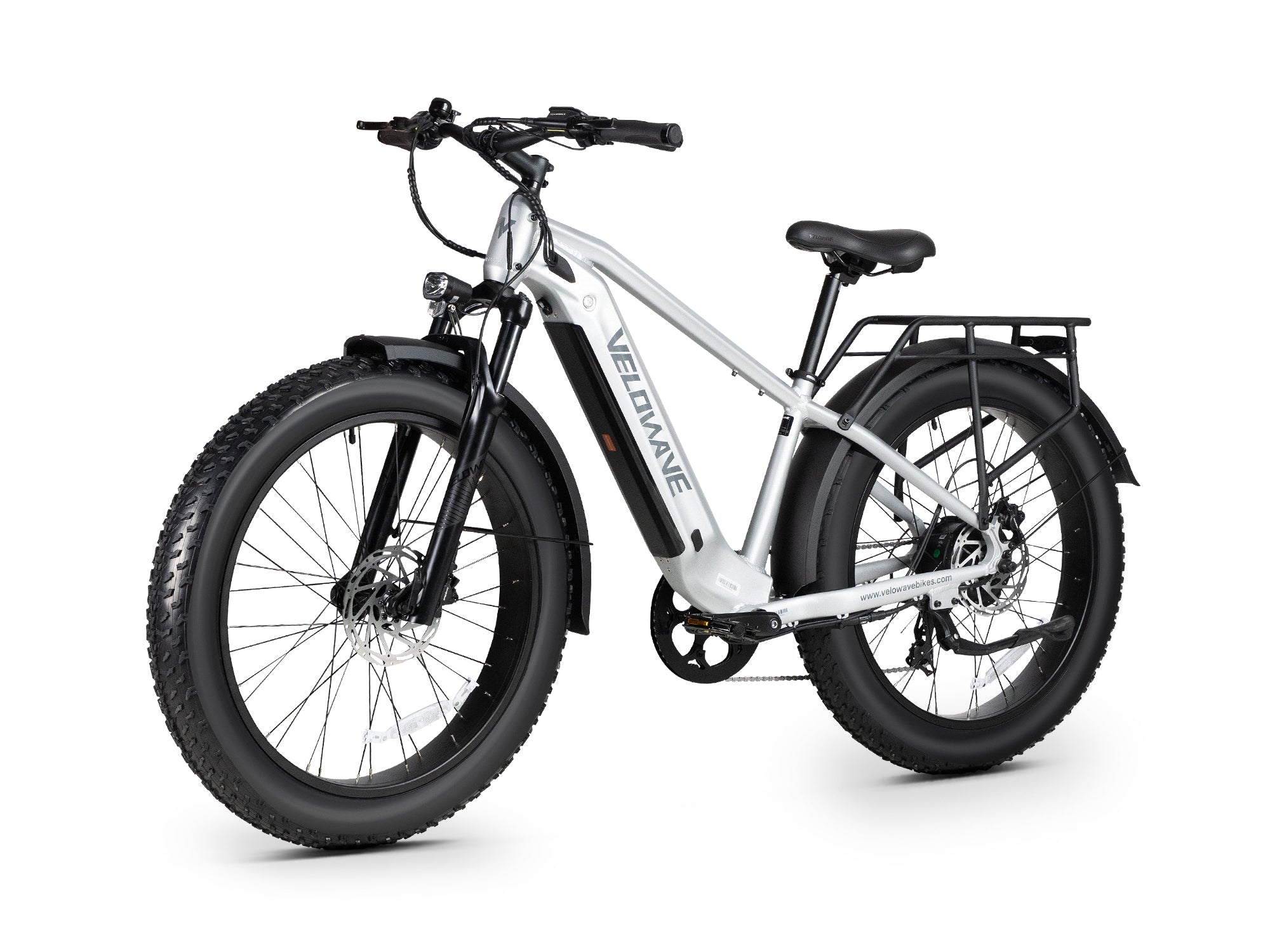

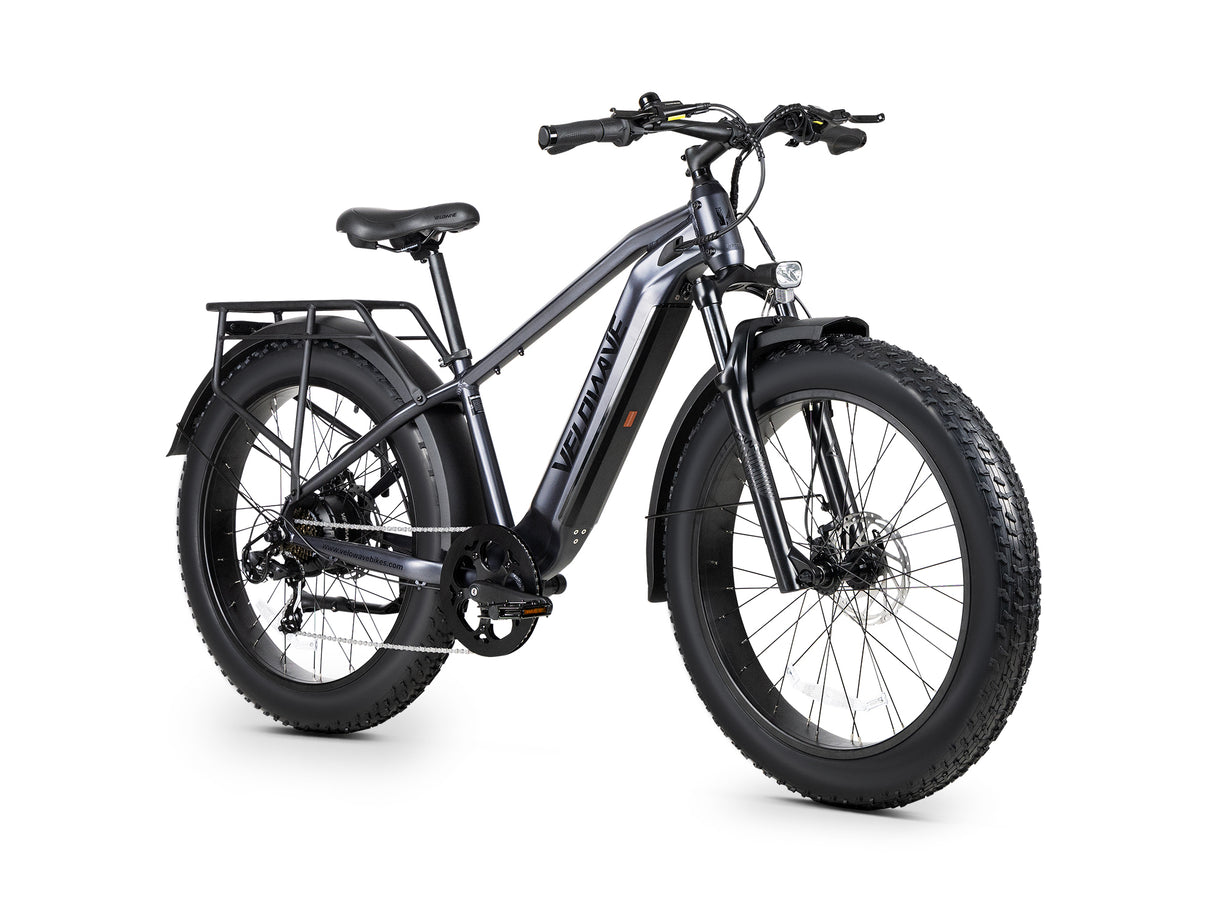

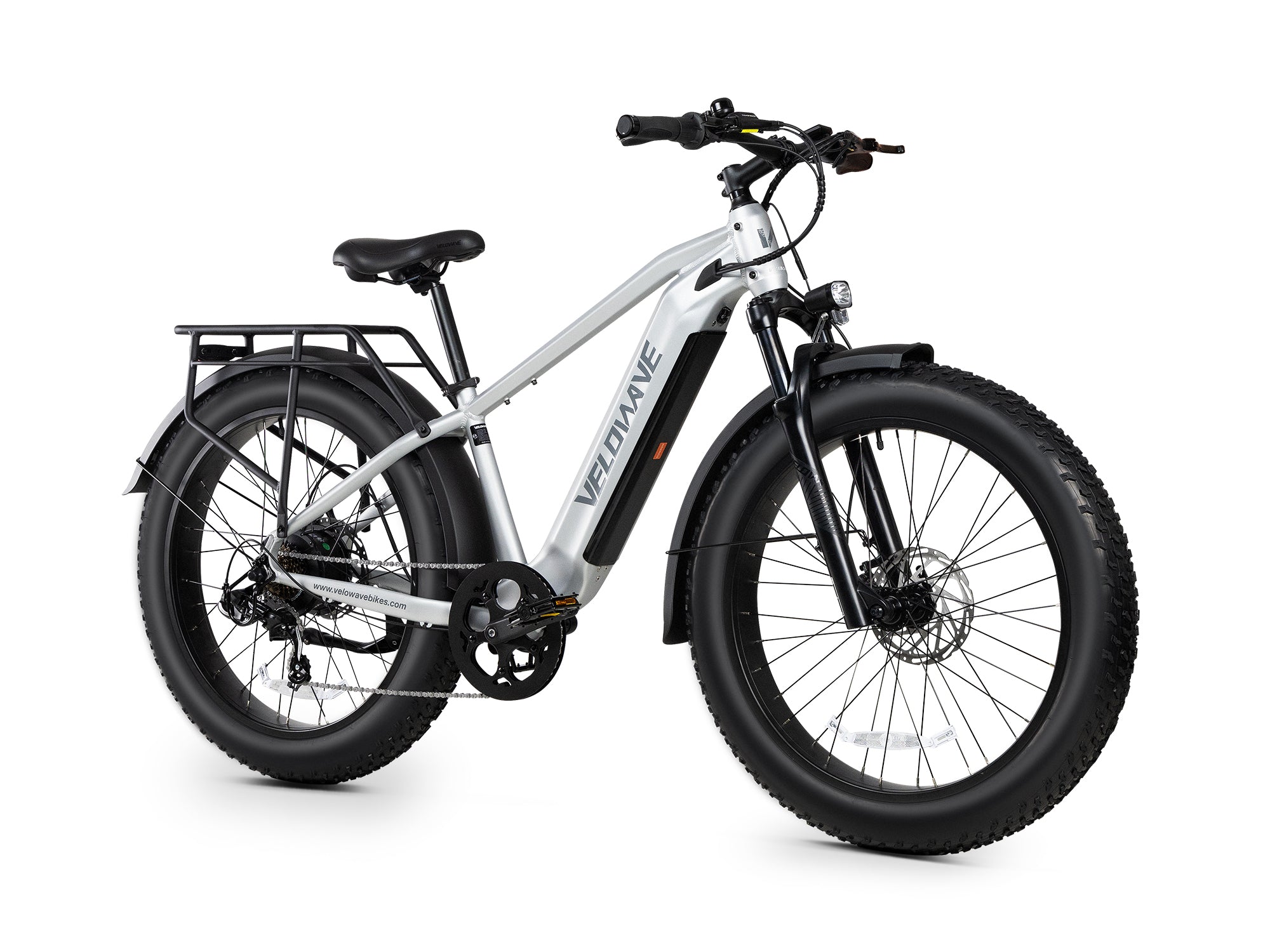

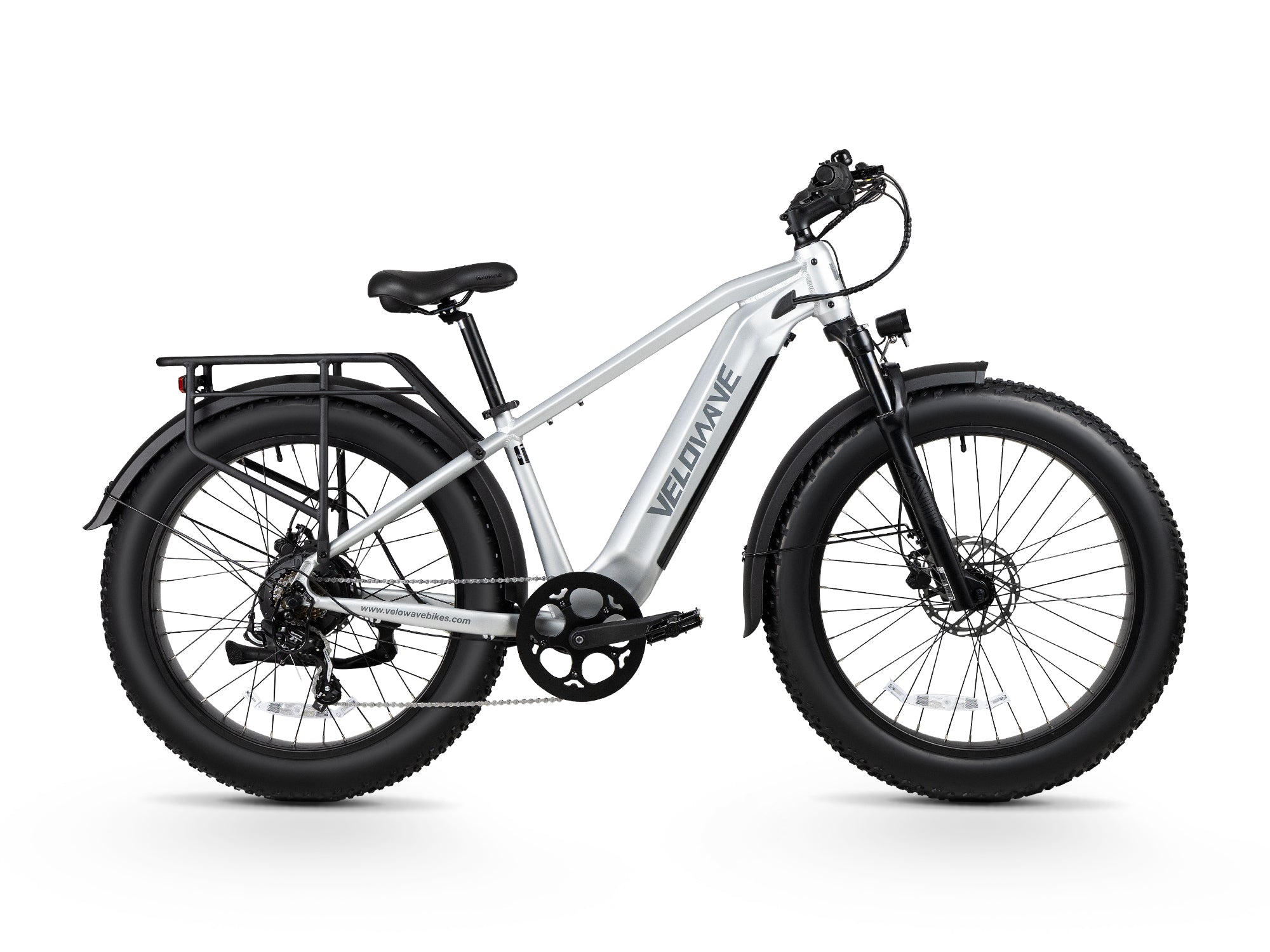

Ranger 3.0 Fat Tire All-Terrain Electric Bike

4.9
Rated 4.9 out of 5 stars
249 Reviews
Sale price $1,599.00 Regular price $1,699.00
6% off
Color: Silver
Compatible Accessories



















Save more buy with ebike
ELOWAVE Electric_Bicycles Silver Ranger 3.0 Fat Tire All-Terrain Electric Bike#color_silver
$1,599.00
Silver
Add extend protection powered by
VELOWAVE
What is my size?
What's in the Box
SIZE &CHART

Size Chart

Size Rider Height Inseam
16.7"
42cm
5’4" - 6’5"
162 - 192cm
30″ - 36″
76cm - 96cm
What's in the Box

Safe Packaging

Our packaging

What is in the box

Our packaging
Electric Bike x 1
Our packaging
Charger x 1
Our packaging
Battery x 1
Our packaging
Front Light & Reflector Combo x1
Our packaging
Spare Screws x 2
Our packaging
Front Axle Skewer x 1
Our packaging
Pedals x 2
Our packaging
Instruction Manual x 1
Our packaging
Allen Wrench x 1
Our packaging
Open End Wrench x 2

Elevate Your Ride with Advanced Technology

The Ranger 3.0 is engineered to conquer off-road adventures with unparalleled ease and control. Its advanced torque sensor delivers responsive power from a robust 750W motor (peak 1000W) with a torque of 85Nm, effortlessly handling rugged terrains and steep inclines. With its advanced features and technology, the Ranger 3.0 sets a new standard for electric bikes, delivering exceptional performance and reliability wherever your adventure takes you.

Key Features

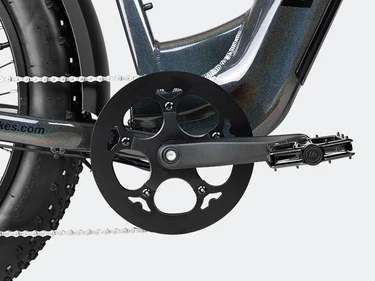

Torque Sensor

Torque Sensor

The torque sensor measures your pedaling force, allowing the motor to deliver power proportional to your effort for a smoother, more responsive ride. Whether climbing hills or cruising flat terrain, it seamlessly adjusts to provide intuitive assistance and confident control on all terrains.

Sturdy Frame

Sturdy Frame

Constructed from 6061 aluminum alloy, the Ranger 3.0 offers exceptional durability and stability, providing a solid and reliable ride even on the toughest off-road terrains. Whether for commuting or adventure, it makes you the center of attention.

Powerful Motor

Powerful Motor

Feel the adrenaline with the Ranger 3.0’s powerful 750W motor, capable of peaking at 1000W with 85Nm of torque. Reach speeds of up to 28 MPH with Pedal Assist, making every ride an exhilarating experience.

Long-Lasting Battery

Long-Lasting Battery

Equipped with a removable 48V 15Ah battery featuring LG cells, it provides an impressive range of up to 90 miles on PAS. The battery is seamlessly integrated into the frame, ensuring optimal performance while maintaining a sleek aesthetic.

Advanced Suspension

Advanced Suspension

Enjoy a smooth and comfortable ride with the hydraulic suspension fork, offering 60mm of travel and a lockout capability. This system absorbs bumps and shocks, delivering a stable experience across all types of terrain.

Tail Light

Tail Light

The rear brake light, with a brightness of 12V 20 LUX, enhances your visibility on the road, ensuring safer rides in low-light conditions. Whether braking or cruising at night, it provides clear signals to those behind you, adding an extra layer of safety and confidence to your ride.

Smart and Responsive

Smart and Responsive

Stay informed and in control with the TFT Smart Display, featuring a colorful, backlit screen for clear visibility in any lighting condition. The integrated torque sensor provides a smooth and responsive ride, enhancing overall safety and comfort.

Reliable Braking

Reliable Braking

Safety is a top priority with the Ranger 3.0’s hydraulic disc brakes, which feature 180mm discs and a power cut-off function. This combination delivers dependable stopping power in all conditions.

Rider Reviews

Assembly Tutorial
Overlanding Offroad with the new Velowave Ranger 3.0 eBike
We Found A Viral UFO Crash Site Near Our House! - Using our Velowave E-Bikes
Velowave Ranger 2.0 -Full Review - The Good AND The Bad
Specs & Size
Grace Step-Thru Electric Bike
Frame Size Standard (mm)
Handlebar Height 1109mm
Reach 404mm
Head Tube Length 140mm
Seat Tube Length 425mm
Standover Height 753mm
Wheelbase 1165mm
Total Length 1914mm
Seat Height Min/Max 823/1012mm

General

  • Classes: Class 3(Ebikes can go up to 28mph with pedal assistance)
  • Max Speed: Up to 28 MPH on Pedal Assist; 20 MPH on Throttle
  • Range: Up to 90 Miles* on PAS, 30 Miles* on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)

Frameset

  • Frame: 6061 Alluminum Alloy with Internal Battery
  • Fork: Hydraulic Suspension Fork with 60mm travel, with lockout
  • Rear Suspension: /

Wheels

  • Rim: Aluminum 26" 36H Front & Rear
  • Spokes: Black Stainless, Front 13Gx 244/246mm, and Rear 12Gx217/219mm
  • Hubs: Disc Nutted Front /Rear Axles
  • Tires: Kenda 26" x 4.0" Fat Tires
  • Tubes: Butyl Rubber, Schrader Valve

E-system

  • Battery: Removable Internal Lithium-ion Battery 48V15AH (720Wh) with LG cells
  • Charger: 48V 2 Amp Charger, Approx. 8 Hour Charging
  • Motor: 750W (Peak 1000W), 85Nm
  • Display: TFT Smart Easy Read Display with Backlight, Colorful screen
  • Pedal Assist: 5 Levels
  • Sensors: Torque Sensor
  • Throttle: Throttle on demand - Throttle from a complete stop
  • Light: Front 48V LED Light 75 LUX
  • Tail Light: Rear Break Light, 12V 20 LUX

Drivetrain

  • Shifter: Shimano 7-Speed RevoShift
  • Crankset: 170mm w/ 52 T
  • Freewheel: Shimano 14-28T, 7-Speed freewheel
  • Pedals: Alloy Platform
  • Chain: KMC 124 Link, 7-Speed
  • Rear Derailleur: Shimano ARDTY500D 7-Speed

Components

  • Saddle: Comfortable Wide Saddle
  • Seatpost: Forged Alloy, Ø30.4*350mm
  • Seat Clamp: Ø35mm Quick Release
  • Stem: Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT:70mm, RISE:±7°
  • Handlebars: Aluminum Ø31.8mm, Width 740mm
  • Headset: Sealed Bearing Headset
  • Grips: Ergonomic Comfort
  • Brakes: Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
  • Kickstand: Alloy, Rear Mount
  • Fenders: Plastic 26"x110mm
  • Rear Rack: Aluminum alloy rear rack

Weight

  • Net Weight: 37.5KG (82.67LBS) (including battery)
  • Gross Weight: 45.6KG (100.53LBS)
  • Battery Weight: 4KG (8.82LBS)
  • Max Load Capacity: 300 lbs Payload Capacity

Size

  • Product Size: 1930x755x1110MM
  • Packing Size: 1590*325*895MM
